0-154-DC-V10XX | VTX10 Designer Tab Mount 1 ⅛" (28mm) Core

0-154-DC-V10XX

VTX10 Designer Tab Mount 1 ⅛" (28mm) Core
Available in: 5 Colors.

0-154-DC-V11XX | VTX11 Designer Tab Mount 1 ¼" (32mm) Core

0-154-DC-V11XX

VTX11 Designer Tab Mount 1 ¼" (32mm) Core
Available in: 5 Colors.

0-154-DC-V15XX | VTX15 Designer Tab Mount 1 ⅛" (28mm) Core

0-154-DC-V15XX

VTX15 Designer Tab Mount 1 ⅛" (28mm) Core
Available in: 5 Colors.

0-154-DC-V17XX | VTX17 Designer Tab Mount 1 ½" (38mm) Core

0-154-DC-V17XX

VTX17 Designer Tab Mount 1 ½" (38mm) Core
Available in: 5 Colors.

0-154-DC-V20XX | VTX20 Designer Tab Mount 1 ½" (38mm) Core

0-154-DC-V20XX

VTX20 Designer Tab Mount 1 ½" (38mm) Core
Available in: 5 Colors.

0-154-DC-V30XX | VTX30 Designer Tab Mount 1 ½" (38mm) Core

0-154-DC-V30XX

VTX30 Designer Tab Mount 1 ½" (38mm) Core
Available in: 5 Colors.

0-154-AD-V32XX | 1 ¼” (32mm) Tube Adapter for VTX10 & VTX15

0-154-AD-V32XX

1 ¼” (32mm) Tube Adapter for VTX10 & VTX15
Available in: 5 Colors.

0-154-AD-V38XX | 1 ½” (38mm) Tube Adapter for VTX10 & VTX15

0-154-AD-V38XX

1 ½” (38mm) Tube Adapter for VTX10 & VTX15
Available in: 5 Colors.

0-154-AD-XA250 | Adapter for 2” (50mm) Tube for VTX17, VTX20 & VTX30

0-154-AD-XA250

Adapter for 2” (50mm) Tube for VTX17, VTX20 & VTX30
Available in: 2 Colors.

0-154-PA-XXX01 | End Plug Adapter for 1 3/4" (45mm) Tube

0-154-PA-XXX01

End Plug Adapter for 1 3/4" (45mm) Tube
Available in: 3 Colors.

0-156-AX-GA025 | Adapter for 2 ½" (63mm) Tube

0-156-AX-GA025

Adapter for 2 ½" (63mm) Tube
Available in: 2 Colors.

0-151-01-002XX | TightSafe Device Set for Chain/Cord

0-151-01-002XX

TightSafe Device Set for Chain/Cord
Available in: 5 Colors.

0-154-BX-36038 | Installation Brackets | Small TM | 1½" (38mm) Projection

0-154-BX-36038

Installation Brackets | Small TM | 1½" (38mm) Projection
Available in: 5 Colors.

0-154-BX-38050 | Installation Brackets | Small TM | 2" (50mm) Projection

0-154-BX-38050

Installation Brackets | Small TM | 2" (50mm) Projection
Available in: 5 Colors.

0-154-BX-56038 | Installation Brackets | Large TM | 1½" (38mm) Projection

0-154-BX-56038

Installation Brackets | Large TM | 1½" (38mm) Projection
Available in: 5 Colors.

0-154-BX-58050 | Installation Brackets | Large TM | 2" (50mm) Projection

0-154-BX-58050

Installation Brackets | Large TM | 2" (50mm) Projection
Available in: 5 Colors.

0-154-BX-TM015 | Easy-Tab Bracket | Small TM | 1½" (38mm) Projection

0-154-BX-TM015

Easy-Tab Bracket | Small TM | 1½" (38mm) Projection
Available in: 5 Colors.

0-154-BX-TM020 | Easy-Tab Bracket | Large Tab | 2" (50mm) Projection

0-154-BX-TM020

Easy-Tab Bracket | Large Tab | 2" (50mm) Projection
Available in: 5 Colors.

0-155-BR-0016I | Large Tab Attachment Plate for HM Zinc Plated

0-155-BR-0016I

Large Tab Attachment Plate for HM Zinc Plated

0-155-BX-SL015 | Installation Bracket | HM | 1½" (38mm) Projection

0-155-BX-SL015

Installation Bracket | HM | 1½" (38mm) Projection
Available in: 4 Colors.

0-155-BX-SL020 | Installation Bracket | HM | 2" (50mm) Projection

0-155-BX-SL020

Installation Bracket | HM | 2" (50mm) Projection
Available in: 4 Colors.

0-156-BX-GA001 | Heavy Duty Tab Mount Bracket Set, for VTX20 or VTX30

0-156-BX-GA001

Heavy Duty Tab Mount Bracket Set, for VTX20 or VTX30
Available in: 4 Colors.

0-154-CO-360X0 | Cover for Small TM Installation Braket with 1½" (38mm) Projection

0-154-CO-360X0

Cover for Small TM Installation Braket with 1½" (38mm) Projection
Available in: 2 Colors.

0-154-CO-380W0 | Cover for Small TM Installation Bracket with 2"(50mm) Projection

0-154-CO-380W0

Cover for Small TM Installation Bracket with 2"(50mm) Projection

0-154-CO-580X0 | Cover for Large TM Installation Braket with 2"(50mm) Projection

0-154-CO-580X0

Cover for Large TM Installation Braket with 2"(50mm) Projection
Available in: 2 Colors.

0-155-CO-SL15X | Cover for HM Installation Braket with 1½" (38mm) Projection

0-155-CO-SL15X

Cover for HM Installation Braket with 1½" (38mm) Projection
Available in: 5 Colors.

0-155-CO-SL20X | Cover for HM Installation Braket with 2" (50mm) Projection

0-155-CO-SL20X

Cover for HM Installation Braket with 2" (50mm) Projection
Available in: 5 Colors.

0-154-EX-00028 | TM End Plug 1⅛" (28mm)

0-154-EX-00028

TM End Plug 1⅛" (28mm)
Available in: 5 Colors.

0-154-EX-00032 | TM End Plug 1¼" (32mm)

0-154-EX-00032

TM End Plug 1¼" (32mm)
Available in: 5 Colors.

0-154-EX-00038 | TM End Plug 1½" (38mm)

0-154-EX-00038

TM End Plug 1½" (38mm)
Available in: 5 Colors.

0-155-EX-SLE01 | HM End Plug 1⅛" (28mm) | Spring Loaded

0-155-EX-SLE01

HM End Plug 1⅛" (28mm) | Spring Loaded
Available in: 5 Colors.

0-155-EX-SLE03 | HM End Plug 1¼" (32mm) | Spring Loaded

0-155-EX-SLE03

HM End Plug 1¼" (32mm) | Spring Loaded
Available in: 5 Colors.

0-155-EX-SLE53 | HM End Plug 1½" (38mm) | Spring Loaded

0-155-EX-SLE53

HM End Plug 1½" (38mm) | Spring Loaded
Available in: 5 Colors.

0-155-EX-SLH53 | HM End Plug 1½" (38mm) | Heavy Duty

0-155-EX-SLH53

HM End Plug 1½" (38mm) | Heavy Duty
Available in: 5 Colors.

VTX10 Designer Tab Mount 1 ⅛" (28mm) Core
28mm (1 ⅛") Tube - Option 1
Picture Code Description Quantity Unit
0-154-TU-280XX | 1 ⅛" (28 mm) Aluminum Tube 0-154-TU-280XX 1 ⅛" (28 mm) Aluminum Tube
 FT
0-154-EX-00028 | TM End Plug 1⅛" (28mm) 0-154-EX-00028 TM End Plug 1⅛" (28mm)
 1 EA
0-154-BX-36038 | Installation Brackets | Small TM | 1½" (38mm) Projection 0-154-BX-36038 Installation Brackets | Small TM | 1½" (38mm) Projection
 1 SET
0-154-CO-360X0 | Cover for Small TM Installation Braket with 1½" (38mm) Projection 0-154-CO-360X0 Cover for Small TM Installation Braket with 1½" (38mm) Projection
 1 SET
28mm (1 ⅛") Tube - Option 2
Picture Code Description Quantity Unit
0-154-TU-280XX | 1 ⅛" (28 mm) Aluminum Tube 0-154-TU-280XX 1 ⅛" (28 mm) Aluminum Tube
 FT
0-155-EX-SLE01 | HM End Plug 1⅛" (28mm) | Spring Loaded 0-155-EX-SLE01 HM End Plug 1⅛" (28mm) | Spring Loaded
 1 EA
0-154-BX-TM015 | Easy-Tab Bracket | Small TM | 1½" (38mm) Projection 0-154-BX-TM015 Easy-Tab Bracket | Small TM | 1½" (38mm) Projection
 1 EA
0-155-BX-SL015 | Installation Bracket | HM | 1½" (38mm) Projection 0-155-BX-SL015 Installation Bracket | HM | 1½" (38mm) Projection
 1 EA
0-155-CO-SL15X | Cover for HM Installation Braket with 1½" (38mm) Projection 0-155-CO-SL15X Cover for HM Installation Braket with 1½" (38mm) Projection
 1 EA
32mm (1 ¼") Tube - Option 1
Picture Code Description Quantity Unit
0-154-TU-320XX | 1 ¼" (32 mm) Aluminum Tube 0-154-TU-320XX 1 ¼" (32 mm) Aluminum Tube
 FT
0-154-AD-V32XX | 1 ¼” (32mm) Tube Adapter for VTX10 & VTX15 0-154-AD-V32XX 1 ¼” (32mm) Tube Adapter for VTX10 & VTX15
 1 EA
0-154-EX-00032 | TM End Plug 1¼" (32mm) 0-154-EX-00032 TM End Plug 1¼" (32mm)
 1 EA
0-154-BX-38050 | Installation Brackets | Small TM | 2" (50mm) Projection 0-154-BX-38050 Installation Brackets | Small TM | 2" (50mm) Projection
 1 SET
0-154-CO-380W0 | Cover for Small TM Installation Bracket with 2"(50mm) Projection 0-154-CO-380W0 Cover for Small TM Installation Bracket with 2"(50mm) Projection
 1 SET
32mm (1 ¼") Tube - Option 2
Picture Code Description Quantity Unit
0-154-TU-320XX | 1 ¼" (32 mm) Aluminum Tube 0-154-TU-320XX 1 ¼" (32 mm) Aluminum Tube
 FT
0-154-EX-00032 | TM End Plug 1¼" (32mm) 0-154-EX-00032 TM End Plug 1¼" (32mm)
 1 EA
0-154-BX-TM015 | Easy-Tab Bracket | Small TM | 1½" (38mm) Projection 0-154-BX-TM015 Easy-Tab Bracket | Small TM | 1½" (38mm) Projection
 1 EA
0-155-BX-SL015 | Installation Bracket | HM | 1½" (38mm) Projection 0-155-BX-SL015 Installation Bracket | HM | 1½" (38mm) Projection
 1 EA
0-155-CO-SL15X | Cover for HM Installation Braket with 1½" (38mm) Projection 0-155-CO-SL15X Cover for HM Installation Braket with 1½" (38mm) Projection
 2 EA
0-154-AD-V32XX | 1 ¼” (32mm) Tube Adapter for VTX10 & VTX15 0-154-AD-V32XX 1 ¼” (32mm) Tube Adapter for VTX10 & VTX15
 1 EA
38mm (1 ½") Tube - Option 1
Picture Code Description Quantity Unit
0-154-TU-380XX | 1 ½" (38 mm) Aluminum Tube 0-154-TU-380XX 1 ½" (38 mm) Aluminum Tube
 FT
0-154-AD-V38XX | 1 ½” (38mm) Tube Adapter for VTX10 & VTX15 0-154-AD-V38XX 1 ½” (38mm) Tube Adapter for VTX10 & VTX15
 1 EA
0-154-EX-00038 | TM End Plug 1½" (38mm) 0-154-EX-00038 TM End Plug 1½" (38mm)
 1 EA
0-154-BX-38050 | Installation Brackets | Small TM | 2" (50mm) Projection 0-154-BX-38050 Installation Brackets | Small TM | 2" (50mm) Projection
 1 SET
0-154-CO-380W0 | Cover for Small TM Installation Bracket with 2"(50mm) Projection 0-154-CO-380W0 Cover for Small TM Installation Bracket with 2"(50mm) Projection
 1 SET
38mm (1 ½") Tube - Option 2
Picture Code Description Quantity Unit
0-154-TU-380XX | 1 ½" (38 mm) Aluminum Tube 0-154-TU-380XX 1 ½" (38 mm) Aluminum Tube
 FT
0-155-EX-SLE53 | HM End Plug 1½" (38mm) | Spring Loaded 0-155-EX-SLE53 HM End Plug 1½" (38mm) | Spring Loaded
 1 EA
0-154-BX-TM015 | Easy-Tab Bracket | Small TM | 1½" (38mm) Projection 0-154-BX-TM015 Easy-Tab Bracket | Small TM | 1½" (38mm) Projection
 1 EA
0-155-BX-SLI15 | Intermediate Bracket | HM | 1½" (38mm) Projection 0-155-BX-SLI15 Intermediate Bracket | HM | 1½" (38mm) Projection
 1 EA
0-155-CO-SL15X | Cover for HM Installation Braket with 1½" (38mm) Projection 0-155-CO-SL15X Cover for HM Installation Braket with 1½" (38mm) Projection
 2 EA
0-154-AD-V38XX | 1 ½” (38mm) Tube Adapter for VTX10 & VTX15 0-154-AD-V38XX 1 ½” (38mm) Tube Adapter for VTX10 & VTX15
 1 EA
VTX15 Designer Tab Mount 1 ⅛" (28mm) Core
28mm (1 ⅛") Tube - Option 1
Picture Code Description Quantity Unit
0-154-TU-280XX | 1 ⅛" (28 mm) Aluminum Tube 0-154-TU-280XX 1 ⅛" (28 mm) Aluminum Tube
 FT
0-154-EX-00028 | TM End Plug 1⅛" (28mm) 0-154-EX-00028 TM End Plug 1⅛" (28mm)
 1 EA
0-154-BX-36038 | Installation Brackets | Small TM | 1½" (38mm) Projection 0-154-BX-36038 Installation Brackets | Small TM | 1½" (38mm) Projection
 1 SET
0-154-CO-360X0 | Cover for Small TM Installation Braket with 1½" (38mm) Projection 0-154-CO-360X0 Cover for Small TM Installation Braket with 1½" (38mm) Projection
 1 SET
28mm (1 ⅛") Tube - Option 2
Picture Code Description Quantity Unit
0-154-TU-280XX | 1 ⅛" (28 mm) Aluminum Tube 0-154-TU-280XX 1 ⅛" (28 mm) Aluminum Tube
 FT
0-155-EX-SLE01 | HM End Plug 1⅛" (28mm) | Spring Loaded 0-155-EX-SLE01 HM End Plug 1⅛" (28mm) | Spring Loaded
 1 EA
0-154-BX-TM015 | Easy-Tab Bracket | Small TM | 1½" (38mm) Projection 0-154-BX-TM015 Easy-Tab Bracket | Small TM | 1½" (38mm) Projection
 1 EA
0-155-BX-SL015 | Installation Bracket | HM | 1½" (38mm) Projection 0-155-BX-SL015 Installation Bracket | HM | 1½" (38mm) Projection
 1 EA
0-155-CO-SL15X | Cover for HM Installation Braket with 1½" (38mm) Projection 0-155-CO-SL15X Cover for HM Installation Braket with 1½" (38mm) Projection
 2 EA
32mm (1 ¼") Tube - Option 1
Picture Code Description Quantity Unit
0-154-TU-320XX | 1 ¼" (32 mm) Aluminum Tube 0-154-TU-320XX 1 ¼" (32 mm) Aluminum Tube
 FT
0-154-AD-V32XX | 1 ¼” (32mm) Tube Adapter for VTX10 & VTX15 0-154-AD-V32XX 1 ¼” (32mm) Tube Adapter for VTX10 & VTX15
 1 EA
0-154-EX-00032 | TM End Plug 1¼" (32mm) 0-154-EX-00032 TM End Plug 1¼" (32mm)
 1 EA
0-154-BX-38050 | Installation Brackets | Small TM | 2" (50mm) Projection 0-154-BX-38050 Installation Brackets | Small TM | 2" (50mm) Projection
 1 SET
0-154-CO-380W0 | Cover for Small TM Installation Bracket with 2"(50mm) Projection 0-154-CO-380W0 Cover for Small TM Installation Bracket with 2"(50mm) Projection
 1 SET
32mm (1 ¼") Tube - Option 2
Picture Code Description Quantity Unit
0-154-TU-320XX | 1 ¼" (32 mm) Aluminum Tube 0-154-TU-320XX 1 ¼" (32 mm) Aluminum Tube
 FT
0-154-AD-V32XX | 1 ¼” (32mm) Tube Adapter for VTX10 & VTX15 0-154-AD-V32XX 1 ¼” (32mm) Tube Adapter for VTX10 & VTX15
 1 EA
0-155-EX-SLE03 | HM End Plug 1¼" (32mm) | Spring Loaded 0-155-EX-SLE03 HM End Plug 1¼" (32mm) | Spring Loaded
 1 EA
0-154-BX-TM015 | Easy-Tab Bracket | Small TM | 1½" (38mm) Projection 0-154-BX-TM015 Easy-Tab Bracket | Small TM | 1½" (38mm) Projection
 1 EA
0-155-BX-SL015 | Installation Bracket | HM | 1½" (38mm) Projection 0-155-BX-SL015 Installation Bracket | HM | 1½" (38mm) Projection
 1 EA
0-155-CO-SL15X | Cover for HM Installation Braket with 1½" (38mm) Projection 0-155-CO-SL15X Cover for HM Installation Braket with 1½" (38mm) Projection
 2 EA
38mm (1 ½") Tube - Option 1
Picture Code Description Quantity Unit
0-154-TU-380XX | 1 ½" (38 mm) Aluminum Tube 0-154-TU-380XX 1 ½" (38 mm) Aluminum Tube
 FT
0-154-AD-V38XX | 1 ½” (38mm) Tube Adapter for VTX10 & VTX15 0-154-AD-V38XX 1 ½” (38mm) Tube Adapter for VTX10 & VTX15
 1 EA
0-154-EX-00038 | TM End Plug 1½" (38mm) 0-154-EX-00038 TM End Plug 1½" (38mm)
 1 EA
0-154-BX-38050 | Installation Brackets | Small TM | 2" (50mm) Projection 0-154-BX-38050 Installation Brackets | Small TM | 2" (50mm) Projection
 1 SET
0-154-CO-380W0 | Cover for Small TM Installation Bracket with 2"(50mm) Projection 0-154-CO-380W0 Cover for Small TM Installation Bracket with 2"(50mm) Projection
 1 SET
38mm (1 ½") Tube - Option 2
Picture Code Description Quantity Unit
0-154-TU-380XX | 1 ½" (38 mm) Aluminum Tube 0-154-TU-380XX 1 ½" (38 mm) Aluminum Tube
 FT
0-154-AD-V38XX | 1 ½” (38mm) Tube Adapter for VTX10 & VTX15 0-154-AD-V38XX 1 ½” (38mm) Tube Adapter for VTX10 & VTX15
 1 EA
0-155-EX-SLE53 | HM End Plug 1½" (38mm) | Spring Loaded 0-155-EX-SLE53 HM End Plug 1½" (38mm) | Spring Loaded
 1 EA
0-154-BX-TM015 | Easy-Tab Bracket | Small TM | 1½" (38mm) Projection 0-154-BX-TM015 Easy-Tab Bracket | Small TM | 1½" (38mm) Projection
 1 EA
0-155-BX-SL015 | Installation Bracket | HM | 1½" (38mm) Projection 0-155-BX-SL015 Installation Bracket | HM | 1½" (38mm) Projection
 1 EA
0-155-CO-SL15X | Cover for HM Installation Braket with 1½" (38mm) Projection 0-155-CO-SL15X Cover for HM Installation Braket with 1½" (38mm) Projection
 2 EA
VTX20 Designer Tab Mount 1 ½" (38mm) Core
38mm (1 ½") Tube - Option 1: 38mm (1 ½") Projection Brackets
Picture Code Description Quantity Unit
0-154-TU-380XX | 1 ½" (38 mm) Aluminum Tube 0-154-TU-380XX 1 ½" (38 mm) Aluminum Tube
 FT
0-154-EX-00038 | TM End Plug 1½" (38mm) 0-154-EX-00038 TM End Plug 1½" (38mm)
 1 EA
0-154-BX-56038 | Installation Brackets | Large TM | 1½" (38mm) Projection 0-154-BX-56038 Installation Brackets | Large TM | 1½" (38mm) Projection
 1 SET
38mm (1 ½") Tube - Option 2: 50mm (2") Projection Brackets
Picture Code Description Quantity Unit
0-154-TU-380XX | 1 ½" (38 mm) Aluminum Tube 0-154-TU-380XX 1 ½" (38 mm) Aluminum Tube
 FT
0-155-EX-SLE53 | HM End Plug 1½" (38mm) | Spring Loaded 0-155-EX-SLE53 HM End Plug 1½" (38mm) | Spring Loaded
 1 EA
0-154-BX-TM020 | Easy-Tab Bracket | Large Tab | 2" (50mm) Projection 0-154-BX-TM020 Easy-Tab Bracket | Large Tab | 2" (50mm) Projection
 1 EA
0-155-BX-SL020 | Installation Bracket | HM | 2" (50mm) Projection 0-155-BX-SL020 Installation Bracket | HM | 2" (50mm) Projection
 1 EA
0-155-CO-SL20X | Cover for HM Installation Braket with 2" (50mm) Projection 0-155-CO-SL20X Cover for HM Installation Braket with 2" (50mm) Projection
 2 EA
45mm (1 ¾") Tube - Option 1: Structural Tube - Internal Diameter: 38mm (1 ½")
Picture Code Description Quantity Unit
0-154-AD-00045 | Adapter for 45 mm Heavy Duty Structural Tube, End Plug Side 0-154-AD-00045 Adapter for 45 mm Heavy Duty Structural Tube, End Plug Side
 1 EA
0-154-EX-00038 | TM End Plug 1½" (38mm) 0-154-EX-00038 TM End Plug 1½" (38mm)
 1 EA
0-154-BX-58050 | Installation Brackets | Large TM | 2" (50mm) Projection 0-154-BX-58050 Installation Brackets | Large TM | 2" (50mm) Projection
 1 SET
0-154-CO-580X0 | Cover for Large TM Installation Braket with 2"(50mm) Projection 0-154-CO-580X0 Cover for Large TM Installation Braket with 2"(50mm) Projection
 1 SET
45mm (1 ¾") Tube - Option 2: Double Insert Tube, 38mm (1 ½") Projection Brackets
Picture Code Description Quantity Unit
0-154-TU-452XX | 1¾" (45mm) Tube (Two Channels) 0-154-TU-452XX 1¾" (45mm) Tube (Two Channels)
 FT
0-154-PA-XXX01 | End Plug Adapter for 1 3/4" (45mm) Tube 0-154-PA-XXX01 End Plug Adapter for 1 3/4" (45mm) Tube
 1 EA
0-154-PE-XXX01 | End Plug for Euro Brackets 1½" (38mm) 0-154-PE-XXX01 End Plug for Euro Brackets 1½" (38mm)
 1 EA
0-154-PB-E04XX | EURO Medium Bracket | Large TM | 2" (50mm) Projection 0-154-PB-E04XX EURO Medium Bracket | Large TM | 2" (50mm) Projection
 1 EA
0-154-PB-E03XX | EURO Medium Bracket | HM | 2" (50mm) Projection 0-154-PB-E03XX EURO Medium Bracket | HM | 2" (50mm) Projection
 1 EA
0-154-PC-E01XX | Cover for EURO Medium Bracket 0-154-PC-E01XX Cover for EURO Medium Bracket
 2 EA
0-154-PC-003XX | Screw Cover for EURO Medium Bracket 0-154-PC-003XX Screw Cover for EURO Medium Bracket
 2 EA
45mm (1 ¾") Tube - Option 2: Double Insert Tube, 50mm (2") Projection Brackets
Picture Code Description Quantity Unit
0-154-PA-XXX01 | End Plug Adapter for 1 3/4" (45mm) Tube 0-154-PA-XXX01 End Plug Adapter for 1 3/4" (45mm) Tube
 1 EA
0-154-PE-XXX01 | End Plug for Euro Brackets 1½" (38mm) 0-154-PE-XXX01 End Plug for Euro Brackets 1½" (38mm)
 1 EA
0-154-PB-E06XX | EURO Large Bracket | Large TM | 2⅜" (60mm) Projection 0-154-PB-E06XX EURO Large Bracket | Large TM | 2⅜" (60mm) Projection
 1 EA
0-154-PB-E05XX | EURO Large Bracket | HM | 2⅜" (60mm) Projection 0-154-PB-E05XX EURO Large Bracket | HM | 2⅜" (60mm) Projection
 1 EA
0-154-PC-E02XX | Cover for EURO Large Bracket 0-154-PC-E02XX Cover for EURO Large Bracket
 2 EA
0-154-PC-004XX | Screw Cover for EURO Large Bracket 0-154-PC-004XX Screw Cover for EURO Large Bracket
 2 EA
50mm (2") Tube - Option 1: 50mm (2") Projection Brackets
Picture Code Description Quantity Unit
0-154-AD-XA250 | Adapter for 2” (50mm) Tube for VTX17, VTX20 & VTX30 0-154-AD-XA250 Adapter for 2” (50mm) Tube for VTX17, VTX20 & VTX30
 2 EA
0-154-EX-00038 | TM End Plug 1½" (38mm) 0-154-EX-00038 TM End Plug 1½" (38mm)
 1 EA
0-154-BX-58050 | Installation Brackets | Large TM | 2" (50mm) Projection 0-154-BX-58050 Installation Brackets | Large TM | 2" (50mm) Projection
 1 SET
0-154-CO-580X0 | Cover for Large TM Installation Braket with 2"(50mm) Projection 0-154-CO-580X0 Cover for Large TM Installation Braket with 2"(50mm) Projection
 1 SET
0-154-TU-500XX | 2" (50 mm) Aluminum Tube 0-154-TU-500XX 2" (50 mm) Aluminum Tube
 FT
50mm (2") Tube - Option 2: 50mm (2") Projection Brackets
Picture Code Description Quantity Unit
0-154-TU-500XX | 2" (50 mm) Aluminum Tube 0-154-TU-500XX 2" (50 mm) Aluminum Tube
 FT
0-154-AD-XA250 | Adapter for 2” (50mm) Tube for VTX17, VTX20 & VTX30 0-154-AD-XA250 Adapter for 2” (50mm) Tube for VTX17, VTX20 & VTX30
 1 EA
0-155-EX-SLE53 | HM End Plug 1½" (38mm) | Spring Loaded 0-155-EX-SLE53 HM End Plug 1½" (38mm) | Spring Loaded
 1 EA
0-154-BX-TM020 | Easy-Tab Bracket | Large Tab | 2" (50mm) Projection 0-154-BX-TM020 Easy-Tab Bracket | Large Tab | 2" (50mm) Projection
 1 EA
0-155-BX-SL020 | Installation Bracket | HM | 2" (50mm) Projection 0-155-BX-SL020 Installation Bracket | HM | 2" (50mm) Projection
 1 EA
0-155-CO-SL20X | Cover for HM Installation Braket with 2" (50mm) Projection 0-155-CO-SL20X Cover for HM Installation Braket with 2" (50mm) Projection
 2 EA
50mm (2") Tube - Option 3: 38mm (1 ½") Projection Brackets
Picture Code Description Quantity Unit
0-154-TU-500XX | 2" (50 mm) Aluminum Tube 0-154-TU-500XX 2" (50 mm) Aluminum Tube
 FT
0-154-PE-XXX01 | End Plug for Euro Brackets 1½" (38mm) 0-154-PE-XXX01 End Plug for Euro Brackets 1½" (38mm)
 1 EA
0-154-PB-E04XX | EURO Medium Bracket | Large TM | 2" (50mm) Projection 0-154-PB-E04XX EURO Medium Bracket | Large TM | 2" (50mm) Projection
 1 EA
0-154-PB-E03XX | EURO Medium Bracket | HM | 2" (50mm) Projection 0-154-PB-E03XX EURO Medium Bracket | HM | 2" (50mm) Projection
 1 EA
0-154-PC-E01XX | Cover for EURO Medium Bracket 0-154-PC-E01XX Cover for EURO Medium Bracket
 1 EA
0-154-PC-003XX | Screw Cover for EURO Medium Bracket 0-154-PC-003XX Screw Cover for EURO Medium Bracket
 1 EA
0-154-PA-0XX03 | Rollux 50mm Smooth Tube Adapter for VTX20 0-154-PA-0XX03 Rollux 50mm Smooth Tube Adapter for VTX20
 1 EA
0-154-PS-ES0LX | Euro Idler End Support Set 0-154-PS-ES0LX Euro Idler End Support Set
 1 Set
0-154-PS-ES0RX | Euro Idler End Support Set for Right Side 0-154-PS-ES0RX Euro Idler End Support Set for Right Side
 1 Set
VTX30 Designer Tab Mount 1 ½" (38mm) Core
38mm (1 ½") Tube - Option 1: 38mm (1 ½") Projection Brackets
Picture Code Description Quantity Unit
0-154-TU-380XX | 1 ½" (38 mm) Aluminum Tube 0-154-TU-380XX 1 ½" (38 mm) Aluminum Tube
 FT
0-154-EX-00038 | TM End Plug 1½" (38mm) 0-154-EX-00038 TM End Plug 1½" (38mm)
 1 EA
0-154-BX-56038 | Installation Brackets | Large TM | 1½" (38mm) Projection 0-154-BX-56038 Installation Brackets | Large TM | 1½" (38mm) Projection
 1 SET
38mm (1 ½") Tube - Option 2: 50mm (2") Projection Brackets
Picture Code Description Quantity Unit
0-154-TU-380XX | 1 ½" (38 mm) Aluminum Tube 0-154-TU-380XX 1 ½" (38 mm) Aluminum Tube
 FT
0-155-EX-SLE53 | HM End Plug 1½" (38mm) | Spring Loaded 0-155-EX-SLE53 HM End Plug 1½" (38mm) | Spring Loaded
 1 EA
0-154-BX-TM020 | Easy-Tab Bracket | Large Tab | 2" (50mm) Projection 0-154-BX-TM020 Easy-Tab Bracket | Large Tab | 2" (50mm) Projection
 1 EA
0-155-BX-SL020 | Installation Bracket | HM | 2" (50mm) Projection 0-155-BX-SL020 Installation Bracket | HM | 2" (50mm) Projection
 1 EA
0-155-CO-SL20X | Cover for HM Installation Braket with 2" (50mm) Projection 0-155-CO-SL20X Cover for HM Installation Braket with 2" (50mm) Projection
 2 EA
45mm (1 ¾") Tube - Option 1: Structural Tube - Internal Diameter: 38mm (1 ½")
Picture Code Description Quantity Unit
0-154-AD-00045 | Adapter for 45 mm Heavy Duty Structural Tube, End Plug Side 0-154-AD-00045 Adapter for 45 mm Heavy Duty Structural Tube, End Plug Side
 1 EA
0-154-EX-00038 | TM End Plug 1½" (38mm) 0-154-EX-00038 TM End Plug 1½" (38mm)
 1 EA
0-154-BX-58050 | Installation Brackets | Large TM | 2" (50mm) Projection 0-154-BX-58050 Installation Brackets | Large TM | 2" (50mm) Projection
 1 SET
0-154-CO-580X0 | Cover for Large TM Installation Braket with 2"(50mm) Projection 0-154-CO-580X0 Cover for Large TM Installation Braket with 2"(50mm) Projection
 1 SET
45mm (1 ¾") Tube - Option 2: Double Insert Tube, 38mm (1 ½") Projection Brackets
Picture Code Description Quantity Unit
0-154-TU-452XX | 1¾" (45mm) Tube (Two Channels) 0-154-TU-452XX 1¾" (45mm) Tube (Two Channels)
 FT
0-154-PA-XXX01 | End Plug Adapter for 1 3/4" (45mm) Tube 0-154-PA-XXX01 End Plug Adapter for 1 3/4" (45mm) Tube
 2 EA
0-154-PE-XXX01 | End Plug for Euro Brackets 1½" (38mm) 0-154-PE-XXX01 End Plug for Euro Brackets 1½" (38mm)
 1 EA
0-154-PB-E04XX | EURO Medium Bracket | Large TM | 2" (50mm) Projection 0-154-PB-E04XX EURO Medium Bracket | Large TM | 2" (50mm) Projection
 1 EA
0-154-PB-E03XX | EURO Medium Bracket | HM | 2" (50mm) Projection 0-154-PB-E03XX EURO Medium Bracket | HM | 2" (50mm) Projection
 1 EA
0-154-PS-ES0LX | Euro Idler End Support Set 0-154-PS-ES0LX Euro Idler End Support Set
 1 Set
0-154-PS-ES0RX | Euro Idler End Support Set for Right Side 0-154-PS-ES0RX Euro Idler End Support Set for Right Side
Optional 		1 Set
0-154-PC-E01XX | Cover for EURO Medium Bracket 0-154-PC-E01XX Cover for EURO Medium Bracket
 2 EA
0-154-PC-003XX | Screw Cover for EURO Medium Bracket 0-154-PC-003XX Screw Cover for EURO Medium Bracket
 2 EA
50mm (2") Tube - Option 1: 50mm (2") Projection Brackets
Picture Code Description Quantity Unit
0-154-TU-501XX | 2" (50 mm) Grooved Aluminum Tube 0-154-TU-501XX 2" (50 mm) Grooved Aluminum Tube
 FT
0-154-AD-XA250 | Adapter for 2” (50mm) Tube for VTX17, VTX20 & VTX30 0-154-AD-XA250 Adapter for 2” (50mm) Tube for VTX17, VTX20 & VTX30
 2 EA
0-154-EX-00038 | TM End Plug 1½" (38mm) 0-154-EX-00038 TM End Plug 1½" (38mm)
 1 EA
0-154-BX-58050 | Installation Brackets | Large TM | 2" (50mm) Projection 0-154-BX-58050 Installation Brackets | Large TM | 2" (50mm) Projection
 1 SET
0-154-CO-580X0 | Cover for Large TM Installation Braket with 2"(50mm) Projection 0-154-CO-580X0 Cover for Large TM Installation Braket with 2"(50mm) Projection
 1 SET
50mm (2") Tube - Option 2: 50mm (2") Projection Brackets
Picture Code Description Quantity Unit
0-154-TU-501XX | 2" (50 mm) Grooved Aluminum Tube 0-154-TU-501XX 2" (50 mm) Grooved Aluminum Tube
 FT
0-154-AD-XA250 | Adapter for 2” (50mm) Tube for VTX17, VTX20 & VTX30 0-154-AD-XA250 Adapter for 2” (50mm) Tube for VTX17, VTX20 & VTX30
 2 EA
0-155-EX-SLE53 | HM End Plug 1½" (38mm) | Spring Loaded 0-155-EX-SLE53 HM End Plug 1½" (38mm) | Spring Loaded
 1 EA
0-154-BX-TM020 | Easy-Tab Bracket | Large Tab | 2" (50mm) Projection 0-154-BX-TM020 Easy-Tab Bracket | Large Tab | 2" (50mm) Projection
 1 EA
0-155-BX-SL020 | Installation Bracket | HM | 2" (50mm) Projection 0-155-BX-SL020 Installation Bracket | HM | 2" (50mm) Projection
 1 EA
0-155-CO-SL20X | Cover for HM Installation Braket with 2" (50mm) Projection 0-155-CO-SL20X Cover for HM Installation Braket with 2" (50mm) Projection
 2 EA
50mm (2") Tube - Option 3: 60mm (2 ⅜") Projection Brackets
Picture Code Description Quantity Unit
0-154-TU-501XX | 2" (50 mm) Grooved Aluminum Tube 0-154-TU-501XX 2" (50 mm) Grooved Aluminum Tube
 1 FT
0-154-AD-XA250 | Adapter for 2” (50mm) Tube for VTX17, VTX20 & VTX30 0-154-AD-XA250 Adapter for 2” (50mm) Tube for VTX17, VTX20 & VTX30
 2 EA
0-154-PE-XXX01 | End Plug for Euro Brackets 1½" (38mm) 0-154-PE-XXX01 End Plug for Euro Brackets 1½" (38mm)
 1 EA
0-154-PS-ES0LX | Euro Idler End Support Set 0-154-PS-ES0LX Euro Idler End Support Set
 1 Set
0-154-PS-ES0RX | Euro Idler End Support Set for Right Side 0-154-PS-ES0RX Euro Idler End Support Set for Right Side
 1 Set
0-154-PB-E05XX | EURO Large Bracket | HM | 2⅜" (60mm) Projection 0-154-PB-E05XX EURO Large Bracket | HM | 2⅜" (60mm) Projection
 1 EA
0-154-PB-E06XX | EURO Large Bracket | Large TM | 2⅜" (60mm) Projection 0-154-PB-E06XX EURO Large Bracket | Large TM | 2⅜" (60mm) Projection
 1 EA
0-154-PC-E02XX | Cover for EURO Large Bracket 0-154-PC-E02XX Cover for EURO Large Bracket
 2 EA
0-154-PC-004XX | Screw Cover for EURO Large Bracket 0-154-PC-004XX Screw Cover for EURO Large Bracket
 2 EA
55mm (2 ⅛") Tube - Option 1: 60mm (2 ⅜") Projection Brackets
Picture Code Description Quantity Unit
0-154-TU-00055 | 55mm Aluminum Tube Flat Groove Mill Finish 16' 0-154-TU-00055 55mm Aluminum Tube Flat Groove Mill Finish 16'
1 Ft

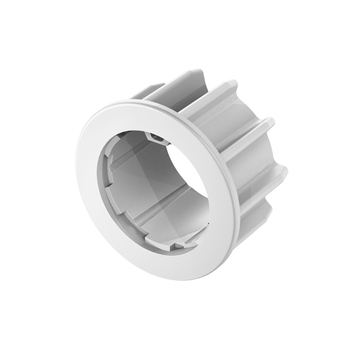

0-154-PA-XXX04 | Rollux 55mm (1 ⅛") Tube Adapter 0-154-PA-XXX04 Rollux 55mm (1 ⅛") Tube Adapter
 2 Ea
0-154-PS-ES0LX | Euro Idler End Support Set 0-154-PS-ES0LX Euro Idler End Support Set
 1 Set
0-154-PS-ES0RX | Euro Idler End Support Set for Right Side 0-154-PS-ES0RX Euro Idler End Support Set for Right Side
 1 Set
0-154-PE-XXX01 | End Plug for Euro Brackets 1½" (38mm) 0-154-PE-XXX01 End Plug for Euro Brackets 1½" (38mm)
 1 EA
0-154-PB-E06XX | EURO Large Bracket | Large TM | 2⅜" (60mm) Projection 0-154-PB-E06XX EURO Large Bracket | Large TM | 2⅜" (60mm) Projection
 1 EA
0-154-PB-E05XX | EURO Large Bracket | HM | 2⅜" (60mm) Projection 0-154-PB-E05XX EURO Large Bracket | HM | 2⅜" (60mm) Projection
 1 EA
0-154-PC-E02XX | Cover for EURO Large Bracket 0-154-PC-E02XX Cover for EURO Large Bracket
 2 EA
0-154-PC-004XX | Screw Cover for EURO Large Bracket 0-154-PC-004XX Screw Cover for EURO Large Bracket
 2 EA
65mm (2 ½") Tube - Option 1: 38mm (1 ½") Projection Brackets
Picture Code Description Quantity Unit
0-156-AX-GA025 | Adapter for 2 ½" (63mm) Tube 0-156-AX-GA025 Adapter for 2 ½" (63mm) Tube
2 EA
0-154-EX-00038 | TM End Plug 1½" (38mm) 0-154-EX-00038 TM End Plug 1½" (38mm)
 1 EA
0-154-BX-58050 | Installation Brackets | Large TM | 2" (50mm) Projection 0-154-BX-58050 Installation Brackets | Large TM | 2" (50mm) Projection
 1 SET
0-154-CO-580X0 | Cover for Large TM Installation Braket with 2"(50mm) Projection 0-154-CO-580X0 Cover for Large TM Installation Braket with 2"(50mm) Projection
 1 SET
65mm (2 ½") Tube - Option 2: 38mm (1 ½") Projection Brackets
Picture Code Description Quantity Unit
0-156-AX-GA025 | Adapter for 2 ½" (63mm) Tube 0-156-AX-GA025 Adapter for 2 ½" (63mm) Tube
2 EA
0-155-EX-SLE53 | HM End Plug 1½" (38mm) | Spring Loaded 0-155-EX-SLE53 HM End Plug 1½" (38mm) | Spring Loaded
 1 EA
0-154-BX-TM020 | Easy-Tab Bracket | Large Tab | 2" (50mm) Projection 0-154-BX-TM020 Easy-Tab Bracket | Large Tab | 2" (50mm) Projection
 1 EA
0-155-BX-SL020 | Installation Bracket | HM | 2" (50mm) Projection 0-155-BX-SL020 Installation Bracket | HM | 2" (50mm) Projection
 1 EA
0-155-CO-SL20X | Cover for HM Installation Braket with 2" (50mm) Projection 0-155-CO-SL20X Cover for HM Installation Braket with 2" (50mm) Projection
 2 EA
65mm (2 ½") Tube - Option 3: 60mm (2 ⅜") Projection Brackets
Picture Code Description Quantity Unit
0-156-AX-GA025 | Adapter for 2 ½" (63mm) Tube 0-156-AX-GA025 Adapter for 2 ½" (63mm) Tube
2 EA
0-154-AD-00045 | Adapter for 45 mm Heavy Duty Structural Tube, End Plug Side 0-154-AD-00045 Adapter for 45 mm Heavy Duty Structural Tube, End Plug Side
 1 EA
0-154-PS-ES0LX | Euro Idler End Support Set 0-154-PS-ES0LX Euro Idler End Support Set
 1 Set
0-154-PS-ES0RX | Euro Idler End Support Set for Right Side 0-154-PS-ES0RX Euro Idler End Support Set for Right Side
 1 Set
0-154-PB-E06XX | EURO Large Bracket | Large TM | 2⅜" (60mm) Projection 0-154-PB-E06XX EURO Large Bracket | Large TM | 2⅜" (60mm) Projection
 1 EA
0-154-PB-E05XX | EURO Large Bracket | HM | 2⅜" (60mm) Projection 0-154-PB-E05XX EURO Large Bracket | HM | 2⅜" (60mm) Projection
 1 EA
0-154-PC-E02XX | Cover for EURO Large Bracket 0-154-PC-E02XX Cover for EURO Large Bracket
 2 EA
0-154-PC-004XX | Screw Cover for EURO Large Bracket 0-154-PC-004XX Screw Cover for EURO Large Bracket
 2 EA

Start selling today

Vertilux provides you with lots of tools and samples you can use to sell window coverings.
Contact your Sales Executive to order Sample Books or to request other marketing tools available for specific collections.
All the fabrics on this collection are showcased in the following Sample Book(s):


Sample Kit - VTX Designer Clutch

Certificates

Aitex
Vertilux 5 Years Warranty
Vertilux 10 Years Warranty
USGBC
Proposition 65 Compliant
Allergy Standards Verified Component
